Distribution Transformer
90000.00 - 300000.00 INR/Unit
Product Details:
- Material Stainless Steel
- Output Customized As Per Specifications
- Phase Three Phase
- Usage Industrial
- Click to View more
X
Distribution Transformer Price And Quantity
- 90000.00 - 300000.00 INR/Unit
- 1 Unit
Distribution Transformer Product Specifications
- Three Phase
- Industrial
- Stainless Steel
- Customized As Per Specifications
Distribution Transformer Trade Information
- Delivery Point (DP) Cash Advance (CA)
- 1 Unit Per Month
- 10 Days
- All India
Product Description

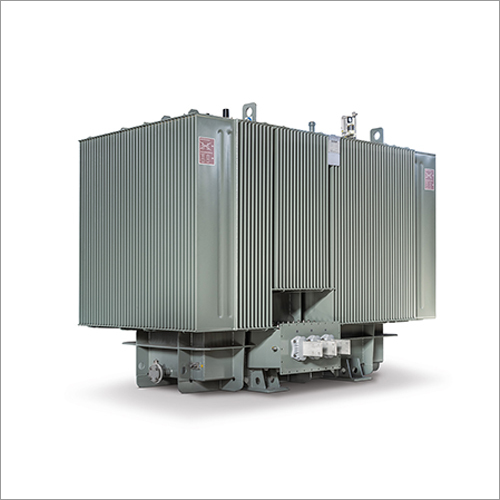

A Distribution Transformer is a device used in the power transmission of electric energy. The transmission current is AC. It is commonly used to increase or decrease the supply voltage without a change in the frequency of AC between circuits. The transformer works on basic principles of electromagnetic induction and mutual induction. It is also introduced as a typical form of an isolation transformer. The basic function of this Distribution Transformer is to modify the high voltage to the standard output.Technical Details :
| Voltage | 1 Phase up to 33 KV 3 Phase from 433 to 11000V |
| Frequency | 50/60 Hz |
| Applicable Standards | IS 2026, IEC 76, ANSI, C.57, as per customer requirement |
| Core | Wound Stack |
| Winding | Copper foil |
| Insulating Fluid | Mineral Oil, both inhibited & uninhibited, as per IS/EC |
| Class of insulation | Class A |
| Tap Changer | Off Circuit Manually Operate "(OCMO) and "On Load Tap Changer" (OLTC) with AVR and RTCC Panel |
- High performance with high efficiency, according to the needs and strategies to reduce system losses and save energy of each customer.
- Step-lap-type magnetic core, resulting in optimization of the noise level, better natural anchoring of the set to withstand short circuit stresses, and low excitation current.
- Conductors covered with thermostabilized insulating paper class E (120oC), whose special characteristic is to delay the regular aging process of the transformer;
- External coatings for the harshest environments, upon specification;
-
Oil level, temperature and pressure controlled by a single protection accessory (RIS - Integrated Safety Detector).
- Option of ecologically correct (natural or synthetic ester-based, biodegradable) insulation fluid, presenting high safety level of flammability with fire point twice as high as the one of mineral oil and self-extinguishing properties, thus reducing the risk of fire propagation.
